PAR-JHD72ESL-R-SS60

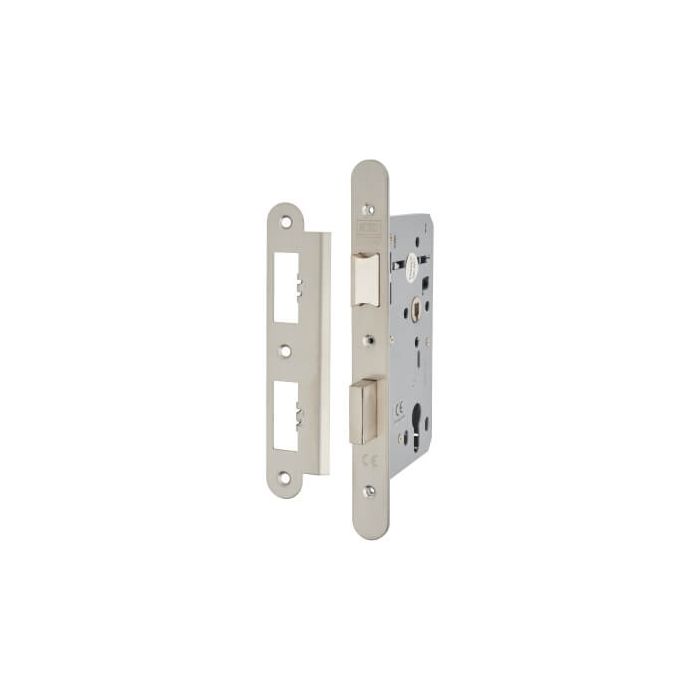

Union HD72ESL-R DDA 60mm Backset Euro Escape Sashlock Satin
Main image
Click to view image in fullscreen
![]()
Union HD72ESL-R DDA 60mm Backset Euro Escape Sashlock Satin with Radius Forend BS EN 12209
In stock
Order by Monday, for delivery on Tuesday (7th Apr)
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £6.50 for small items, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£30.48
Incl. VAT
£25.40
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
Union HD72ESL 60mm Satin Euro Profile Escape Sashlock BS EN 12209 with Radius Forend
The HD72 is a range of high quality lockcases from Union.
HD72 locks are designed and engineered to last longer, extending door hardware lifecycles and reducing maintenance and replacement costs. HD72 has exceeded 3.5 million cycles - 14 times greater than the industry standard, set by BS EN 12209
The full HD72 range has been designed with the same footprint for maximum user convenience, using the same case sizes for easier installation
Application uses
- For use in high frequency areas used by public or others with little incentive to exercise care and with a high chance of misuse
- Suitable for doors hinged on the left or the right
Features
- European DIN style casing with 72mm centres and 60mm backset which are designed for use with Europrofile cylinders
- 20mm Single throw deadbolt for ease of operation
- Durable latch follower technology successfully cycle tested to 3.5 million operations
- Quick reversible latch allows easy on-site handing
- Spindle grip feature reduces rattle
- Two piece forend provides clean aesthetics and easy maintenance
- Adjustable strike to reduce door rattle
- Splinter guard provides a professional installation
- Pierced to accept bolt through door furniture with 38mm centres
- Deadbolt: Steel, chrome plated
- 15 Year Guarantee
Operation
Escape Sashlock function from the inside:
- The latch and deadbolt are retracted simultaneously with a single operation of the lever handle
- When unlocked only the latch is retracted
- Deadbolt locked and unlocked by the cylinder key/cylinder turn
- On a second turn the cylinder will retract the latchbolt
Escape Sashlock function from the outside:
- Only the latch bolt is withdrawn by lever handle
- Deadbolt locked and unlocked by the cylinder key/cylinder turn
- On a second turn the cylinder will retract the latch head
Sizes
- Case Size: 90mm
- Backset: 60mm
- Centres: 72mm
- Follower: 8mm
- Faceplate: 235mm x 24mm
- Case height: 165mm
- Escutcheon screw centres: 38mm
Finish
- Case: Heavy duty mild steel enclosed case Silver finish
- Forend: Grade 304 Satin stainless steel
- Strike plate: Finished to match forend
Standards
- Tested to BS EN 12209 : 2003
- CE Marked
- Certifire approved: CF5543
- Tested to EN 1634-1 2014 on 30 and 60 minute timber fire doors and 240 minute metal fire doors
- Assists in fulfilling duties required under the Equality Act (EA)
- Satisfies recommendations of BS8300 and Approved Document M (ADM)
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Union |
|---|---|
| Guarantee | 15 Year |
| Lock Type | Mortice Escape Lock |
| Lock Operation | Euro Cylinder |
| Lock Backset | 60mm |
| Faceplate Width | 24mm |
| Forend Finish | Stainless Steel |
