Description

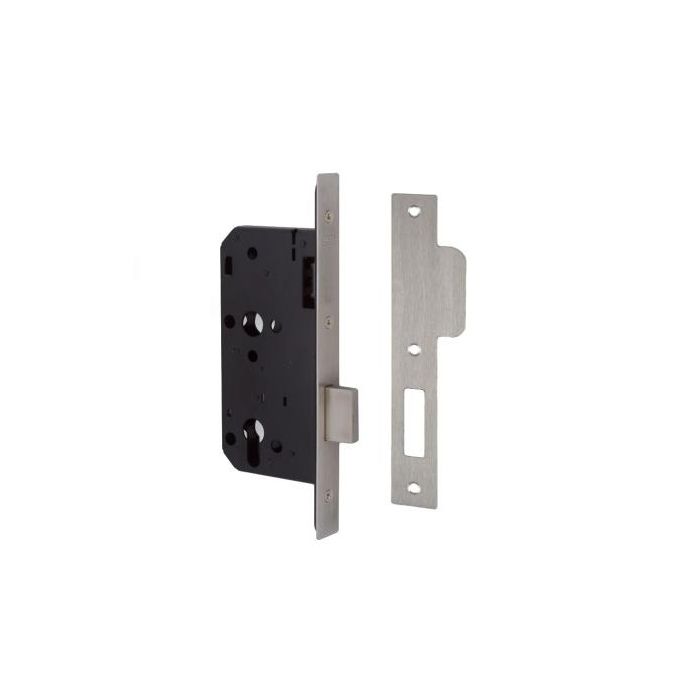

Union L2C22 55mm Satin Euro Profile Deadlock BS EN12209
The UNION L2C22 mortice deadlock is the ideal solution to assist in fulfilling duties under DDA legislation
Application uses
- For timber door hinged on the left or the right
- Satisfies BS8300 and Approved Document M
Features
- Modular case range
- European style casing with 72mm centres which accommodates most euro profile cylinders
- Double throw - 20mm deadbolt throw when key is turned twice
- Pierced to accept bolt through security rose
- Deadbolt: Stainless steel
- 5 Year Guarantee
Operation
- Turn key to throw deadbolt and release
- Double throw mechanism
Sizes
- Case Size: 83mm
- Backset: 55mm
- Faceplate: 235mm x 24mm
- Case height: 165mm
- Escutcheon screw centres: 38mm
Finish
- Case: Steel, black powder coat
- Forend: Satin stainless steel
- Strike plate: Finished to match forend
Standards
- Tested to BS EN 12209 : 2003
- CE Marked
- EN 1634-1 assessed for use on 30 and 60 minutes timber fire doors
- EC Certificate number: 0832-CPD-6045
- Assists in fulfilling duties required under the Equality Act (EA)
- Satisfies recommendations of BS8300 and Approved Document M (ADM)
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Manufacturer | Union |
|---|---|
| Dimensions | 165 (H) x 83 (D) |
| Guarantee | 5 Year |
| Lock Type | Mortice Deadlock |
| Lock Operation | Euro Cylinder |
| Lock Backset | 55mm |
| Lock Centres | N/A |
| Faceplate Width | 24mm |
| Environmental Suitability | All |
| Mechanism | Cylinder |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 75 |
| Forend Finish | Stainless Steel |
